1.About Tapered Drill Rods

Tapered drill rods are designed for use with tapered drill bits in shallow-hole rock drilling applications. They are widely used with hand-held rock drills, air-leg pneumatic rock drills, and light hydraulic drilling equipment for drilling blast holes and excavation holes in rock formations.

The tapered connection between the drill rod and drill bit ensures efficient transfer of impact energy from the rock drill to the rock surface while allowing quick and convenient bit replacement in the field.

Common specifications include H22 and H25 rod profiles, with taper angles of 4°46′, 7°, 11°, and 12° to suit different drilling systems and regional market requirements. Standard lengths range from 400 mm to 5,000 mm.

Tapered drill rods are widely used in mining, quarrying, tunneling, construction, anchoring projects, slope stabilization, and water conservancy engineering, where economical and reliable shallow-hole drilling solutions are required.

To meet different rock conditions and drilling requirements, tapered drill rods are available in two manufacturing options:

· Standard Drill Rods – suitable for general drilling operations and cost-sensitive applications.

· Carburized Drill Rods – featuring enhanced surface hardness, improved wear resistance, and extended service life in demanding drilling conditions.

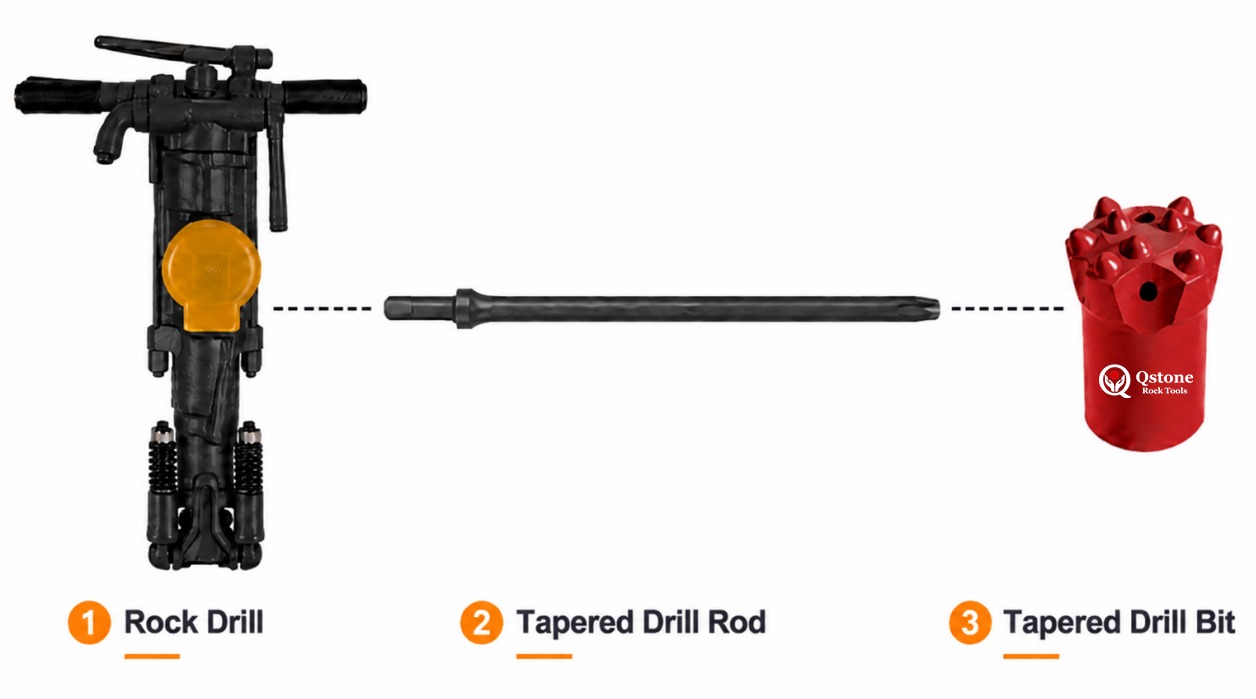

2. Product Structure

3.Tapered Drill Rods - Technical Specifications

● Tapered Drill Rods - Technical Specifications

Standard and customized lengths are available to meet different drilling requirements. Please contact us for detailed specifications and technical support.

● Manufacturing Options

Surface Treatment: Carburized surface available for improved wear resistance and durability.

4.Key Features

● Efficient Energy Transfer

‍

Precision taper-fit connection improves impact energy transmission.

● High-Quality Alloy Steel

Manufactured from premium alloy steel for improved strength and durability.

● Extended Service Life

Carburized surface treatment enhances wear resistance.

● Multiple Taper Angles Available

Available in:

● Compatible with Common Rock Drills

Suitable for:

5.Applications

● Quarrying

Tapered drill rods are widely used in quarry drilling operations for drilling shallow blast holes with hand-held and air-leg rock drills. They provide a reliable and economical solution for limestone, granite, and aggregate production sites.

● Small-Scale Mining

Widely used in underground gold, copper and polymetallic mines with pneumatic rock drills.

● Construction & Blasting

Suitable for road construction, slope stabilization and foundation excavation projects.

● Tunnel Development

Used for shallow-hole drilling during tunnel excavation and drift development.

6. Compatible Rock Drills

Compatible with:

7. Related Products

Tapered Button Bits	Tapered Cross Bits	Tapered Chisel Bits	Pneumatic Rock Drills

8. FAQ

● What is the difference between standard and carburized drill rods?

Carburized drill rods offer higher surface hardness, improved wear resistance, and longer service life in abrasive rock formations.

● What taper angles are available?

‍

4°46′, 6°,7°, 11°, and 12°

● What drill bits can be used with tapered drill rods?

Button bits, cross bits, and chisel bits.

● What industries use tapered drill rods?

Mining, quarrying, construction, and tunneling.

● What is the typical drilling depth?

Usually less than 6 meters.

● Which rock drills are compatible?

YT24, YT27, YT28, YO20, and YN27.

9. Why Choose Q-Stone Taper Rods

● Reliable Manufacturing
Over 15 years of experience in rock drilling tools production.

● Strict Quality Control
Each drill rod undergoes inspection before shipment.

● Stable Quality

Produced under strict heat treatment control.

● Premium Steel

Made from 23CrNi3Mo alloy steel.

● Longer Service Life

Carburized surface improves wear resistance.

● OEM Available

Custom lengths and taper angles supported.
